Power Station Construction 40t Welding Roller , 6-60m/H Adjustable Welding Rotator

Place of Origin : China

Brand Name : weldsuccess

Certification : CE, ISO9000

Model Number : HGZ series

MOQ : 1set

Price : Negotiable

Packaging Details : Mainframe naked in container and electric control part packed in plywood case then in container;

Delivery Time : 25days

Payment Terms : TT/LC

Supply Ability : 20sets

Name : Conventional welding rotators

Loading capacity : 40t

Motor power : 4KW

Suit diameter mm : 600-4200mm

Linear speed m/h : 6-60m/h

Applications : power station construction

Contact Now

Power Station Construction 40t Welding Rotators , Pipe Turning Rollers Motor Power



self aligned welding rotator of Description



This series welding rotators are self-alignment/self centering type.

Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made welding rotator according to your special requirements.



Main Parameters



Model

HGZ5

HGZ10

HGZ20

HGZ40

HGZ60

Max loading T

5

10

20

40

60

Suit diameter mm

Min

250

320

500

600

750

Max

2300

2800

3500

4200

5000

Rubber Roller mm

Dia

250

300

350

400

450

Width

100

120

120

120

120

Metallic roller mm

Dia

244

294

344

394

444

Width

20

25

30

40

50

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

0.75

1.1

1.5

3

4

Roller distance mm

900

1100

1350

1600

1800

Above are our standard models and parameters, and it can be designed and manufactured on request.
             *We reserve the right to alter specifications without prior notice.





Optional features:



  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;

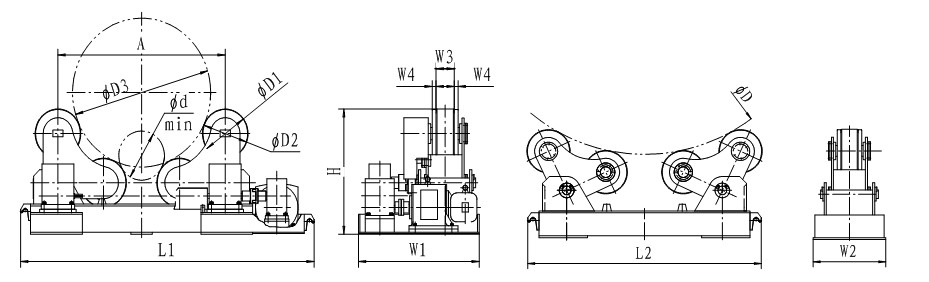

Structure drawing



Power Station Construction 40t Welding Roller , 6-60m/H Adjustable Welding Rotator



Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
